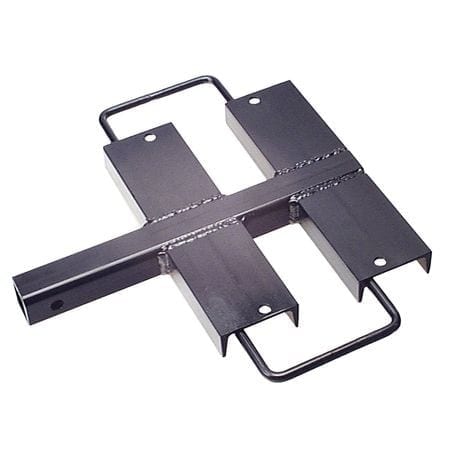

CAPSTAN HOIST HITCH-RECEIVER MOUNT

Faster than any other method, this job-ready mount puts a capstan hoist in the right position for pulling, stringing, and lifting jobs. With the hoist stored on it, the mount’s square tube simply inserts and pins in any 2″-square receiver of a Class III or IV Towing Hitch. Now, capstan hoists can be as universal as this type of trailer hitch is to most service vehicles. The T308-0999 Hitch-Receiver Mount features a hole pattern specifically designed to fit Swivel-Base Mount C308-0903. The swivel mount’s turntable design permits proper alignment without repositioning service vehicles. The swivel mount permits pinning the bracket at every 15˚ interval around the circular base for stringing, tensioning, sagging conductors; pulling in the cable; hoisting equipment; setting poles; pulling vehicles. The Hitch-Receiver Mount is rated at 1,000 lb. to correspond with the ratings of capstan hoists for which it is intended. Only 12V, 115V, and Hydraulic 1,000-lb.-rated hoists are recommended for truck mounting Contact us if you have any questions.
