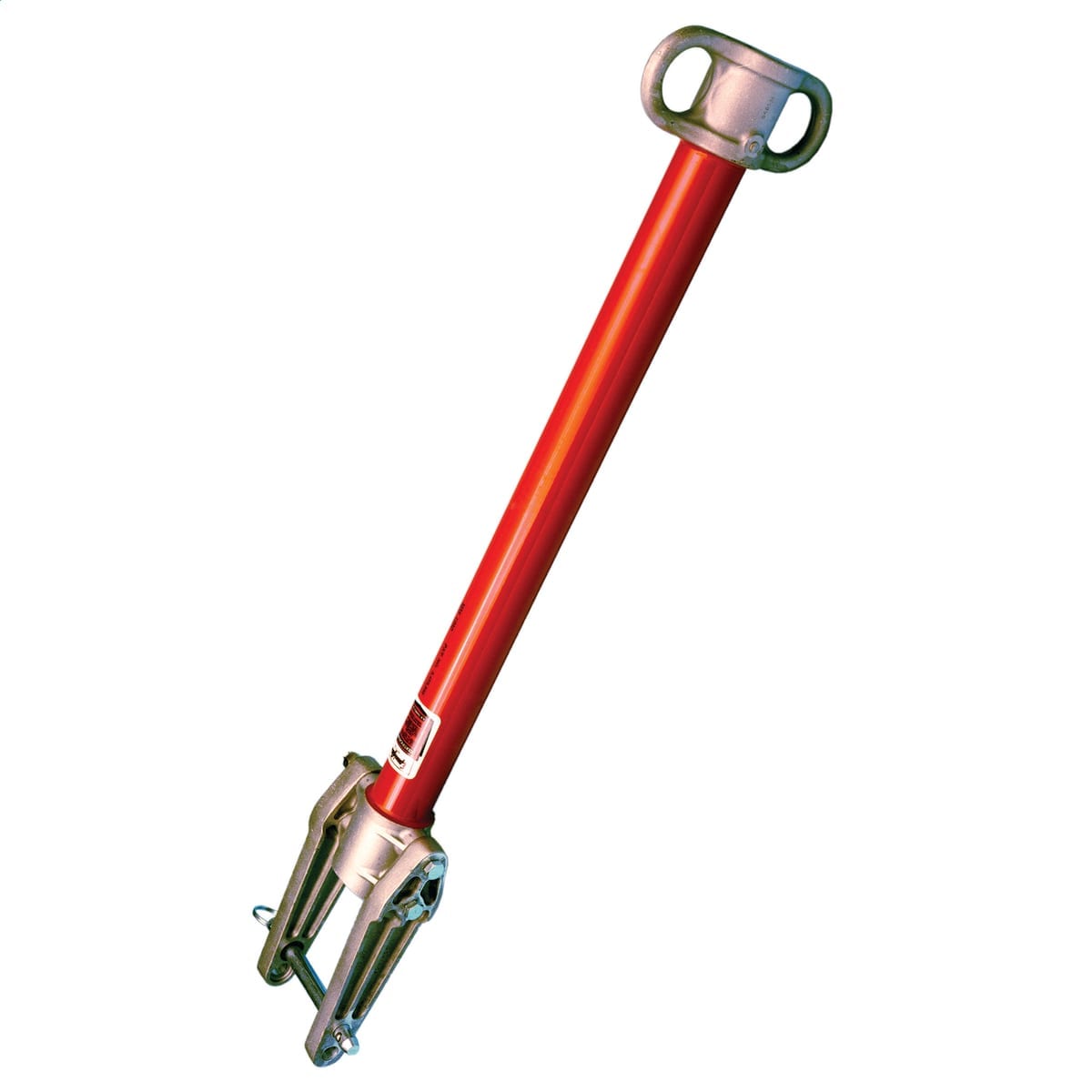

AB Chance Crossarm Gin

Yoke casting fits over distribution crossarms, so this AB Chance Crossarm Gin can be used with rope blocks or handline to lift conductors from their insulators. A removable cadmium-plated steel pin provides adjustment for crossarm from 3.5″ x 4.5″ up to 4.75″ x 5.75″. At a 30˚ maximum angle from vertical, 44″ gin has rated working load including pull force of 750 lb.- 56″ gin, 500 lb. Gins are not intended for applications involving side pull on either hoist line or load line. Lines to be within 5˚ of vertical. Contact us if you have any questions.
